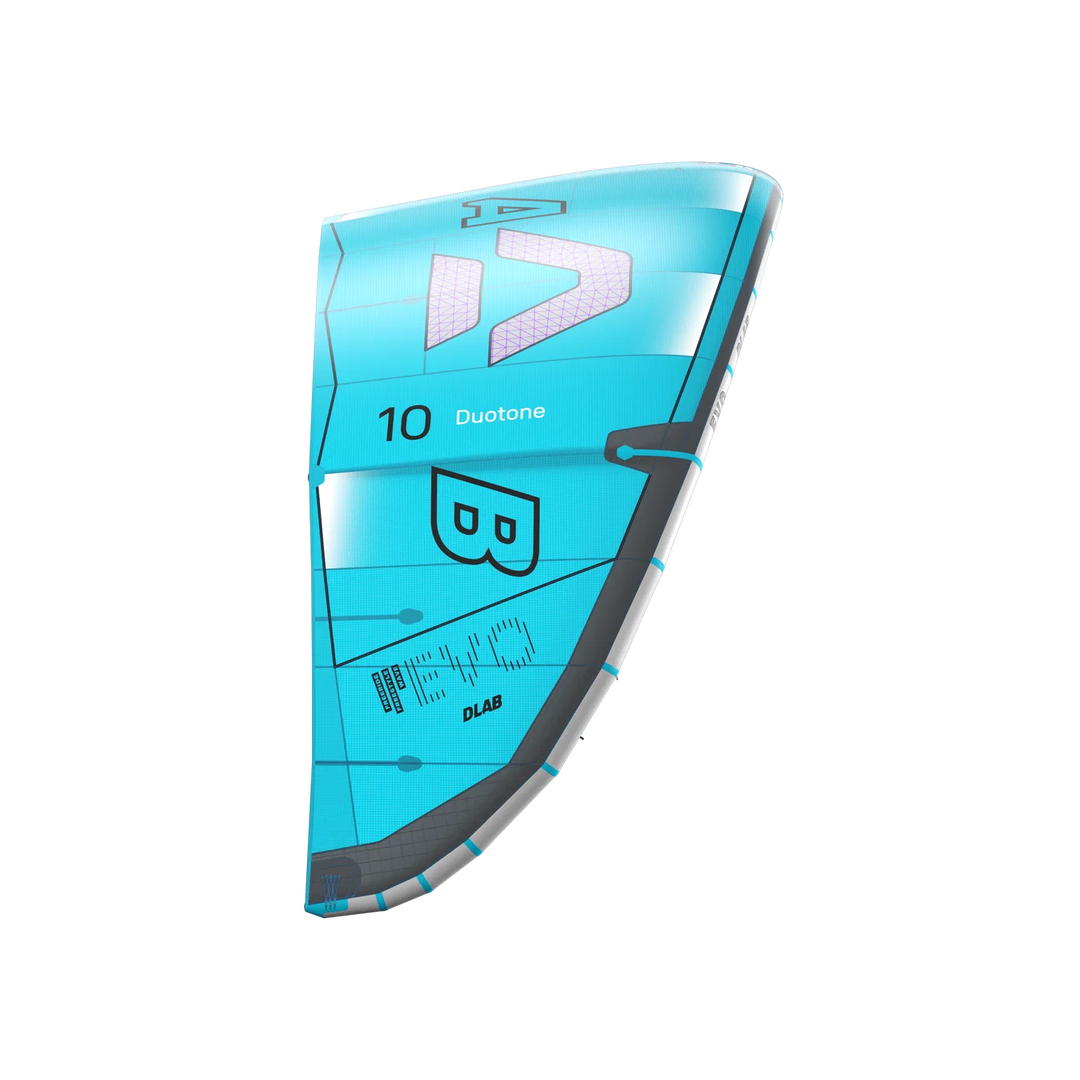

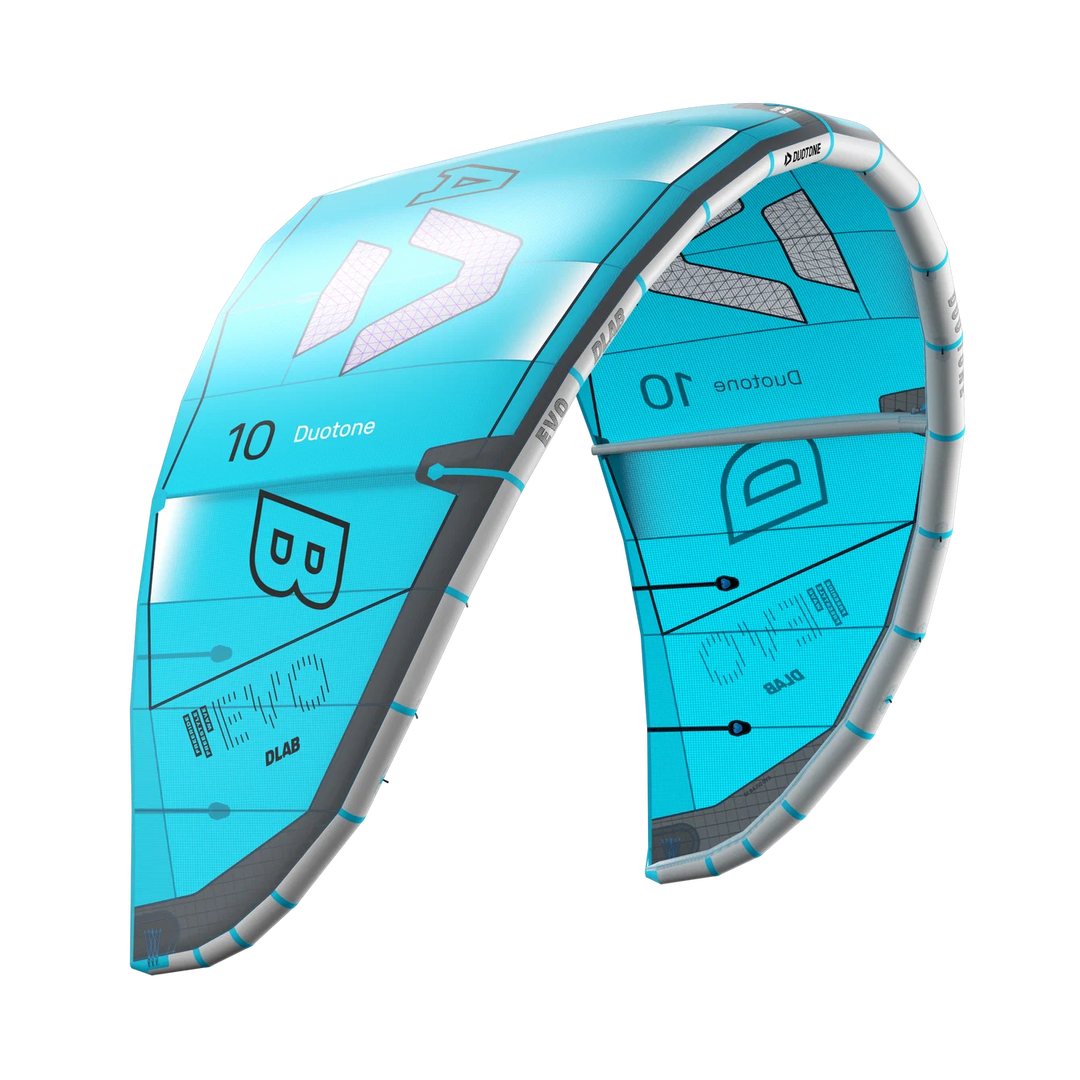

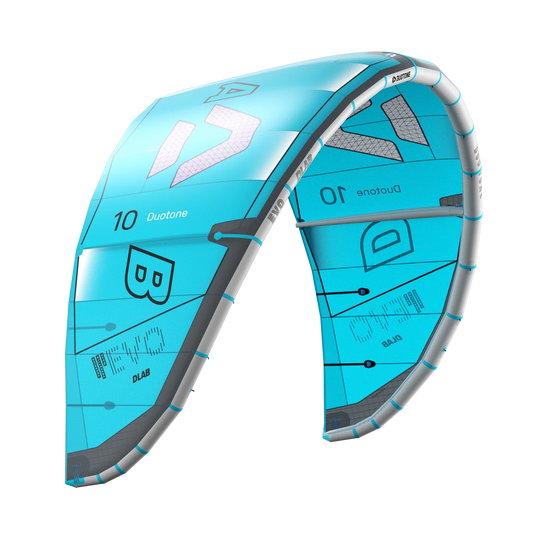

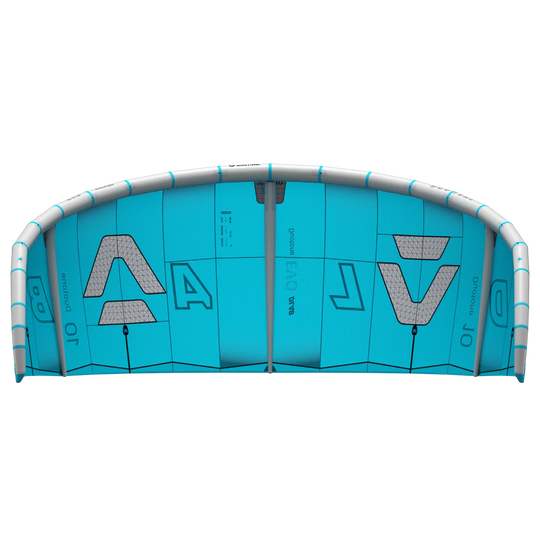

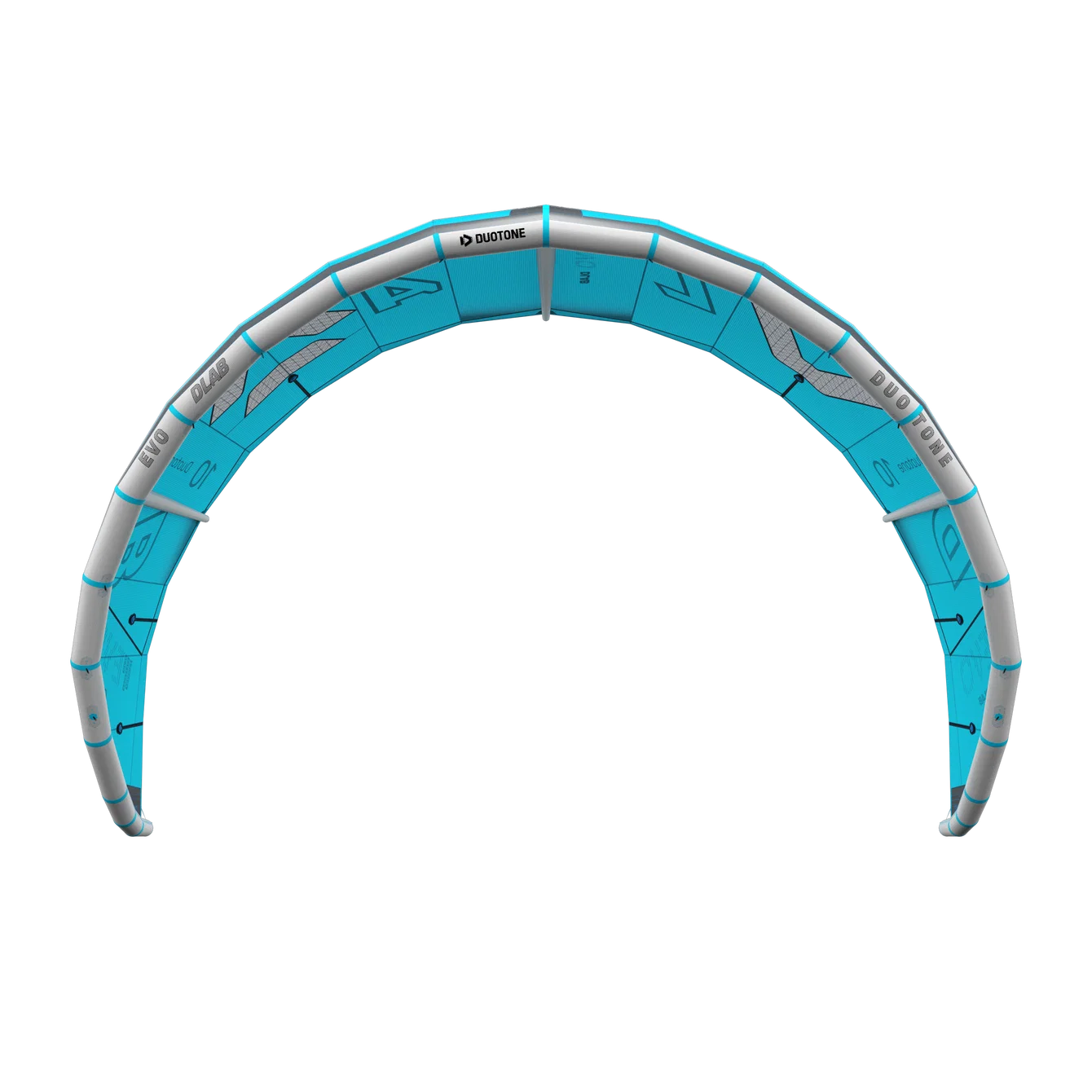

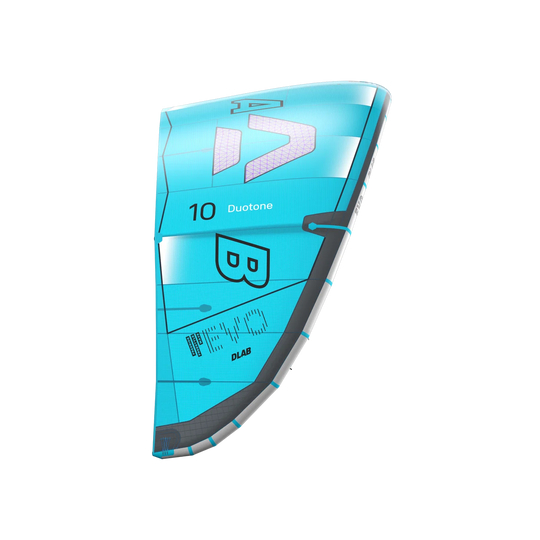

Evo D/LAB 2027

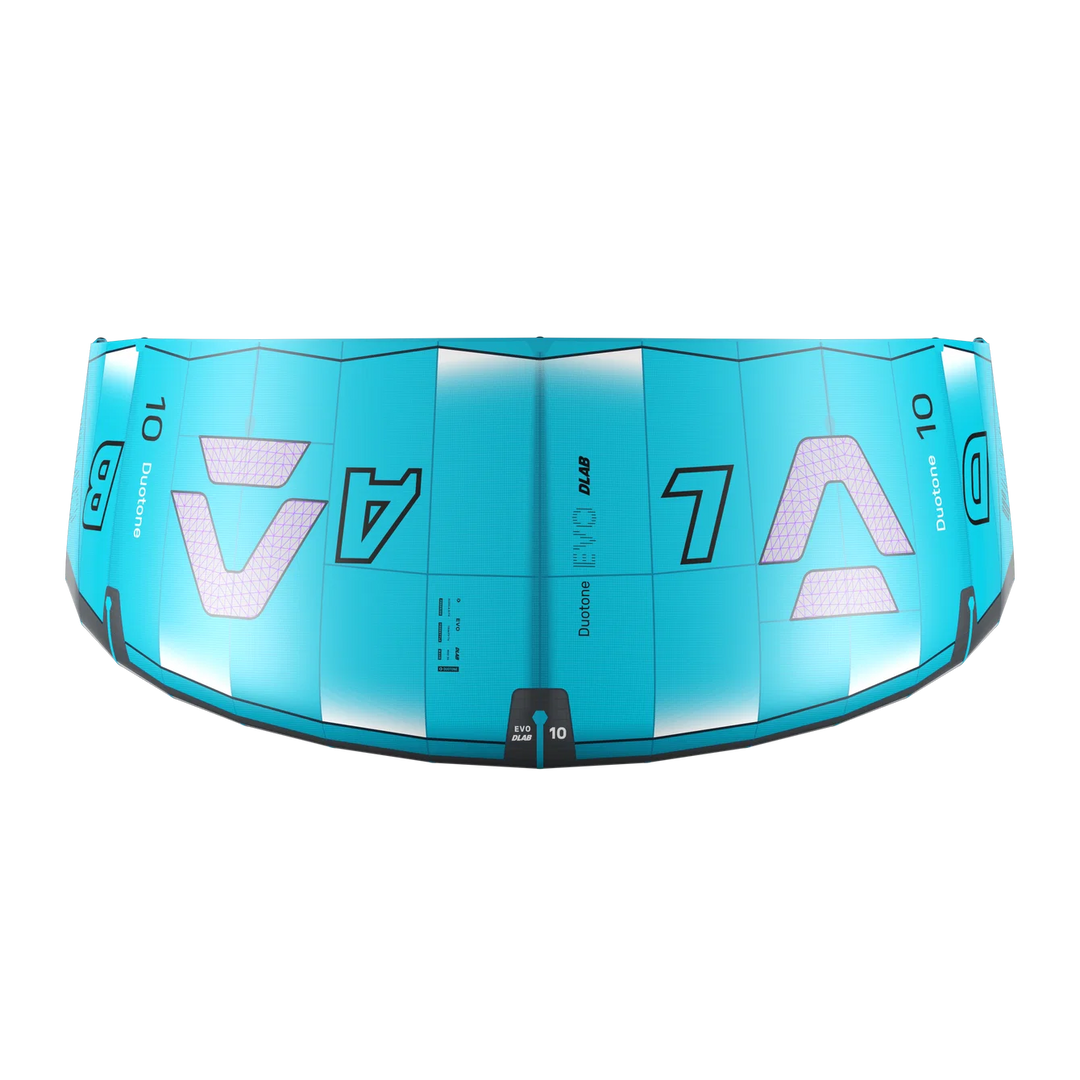

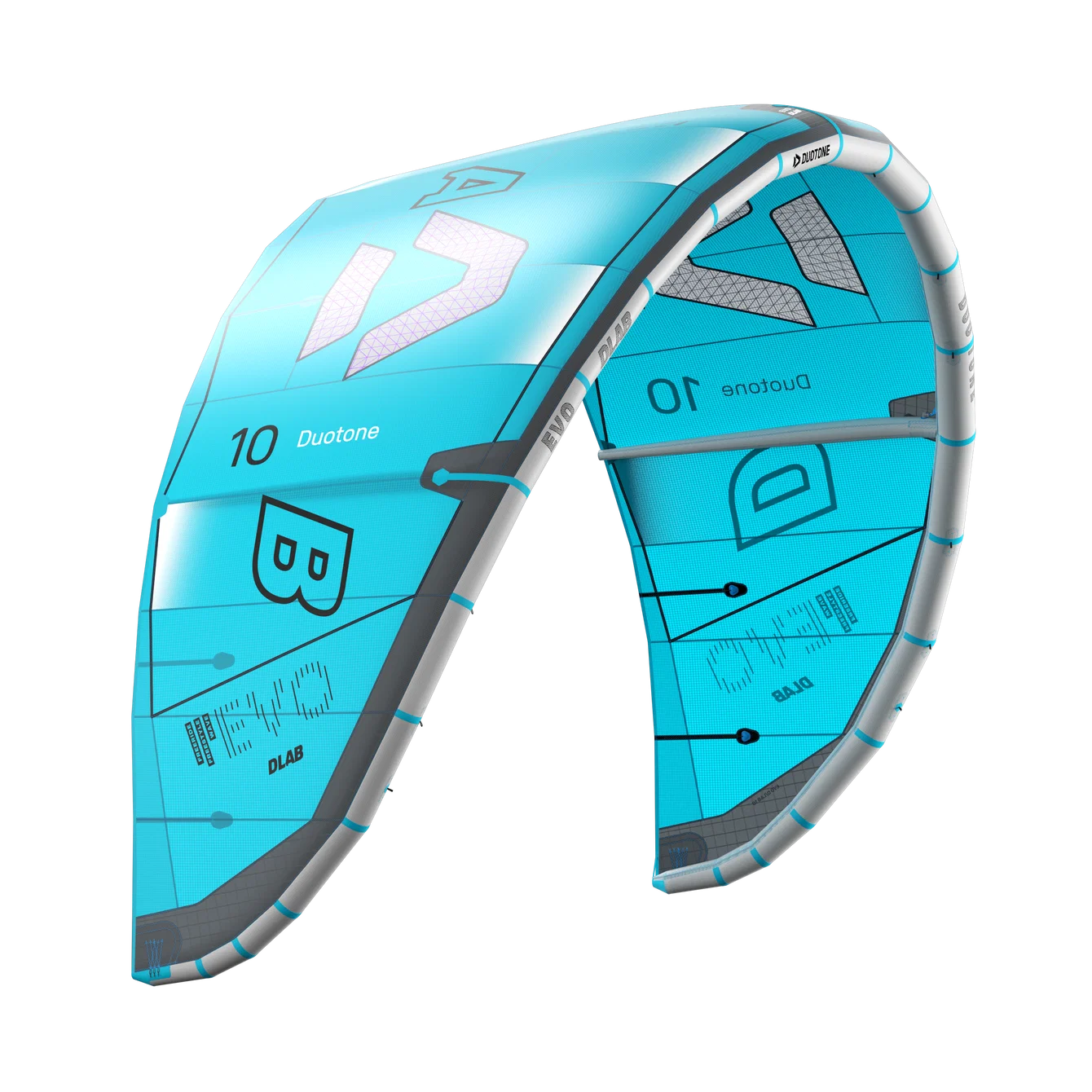

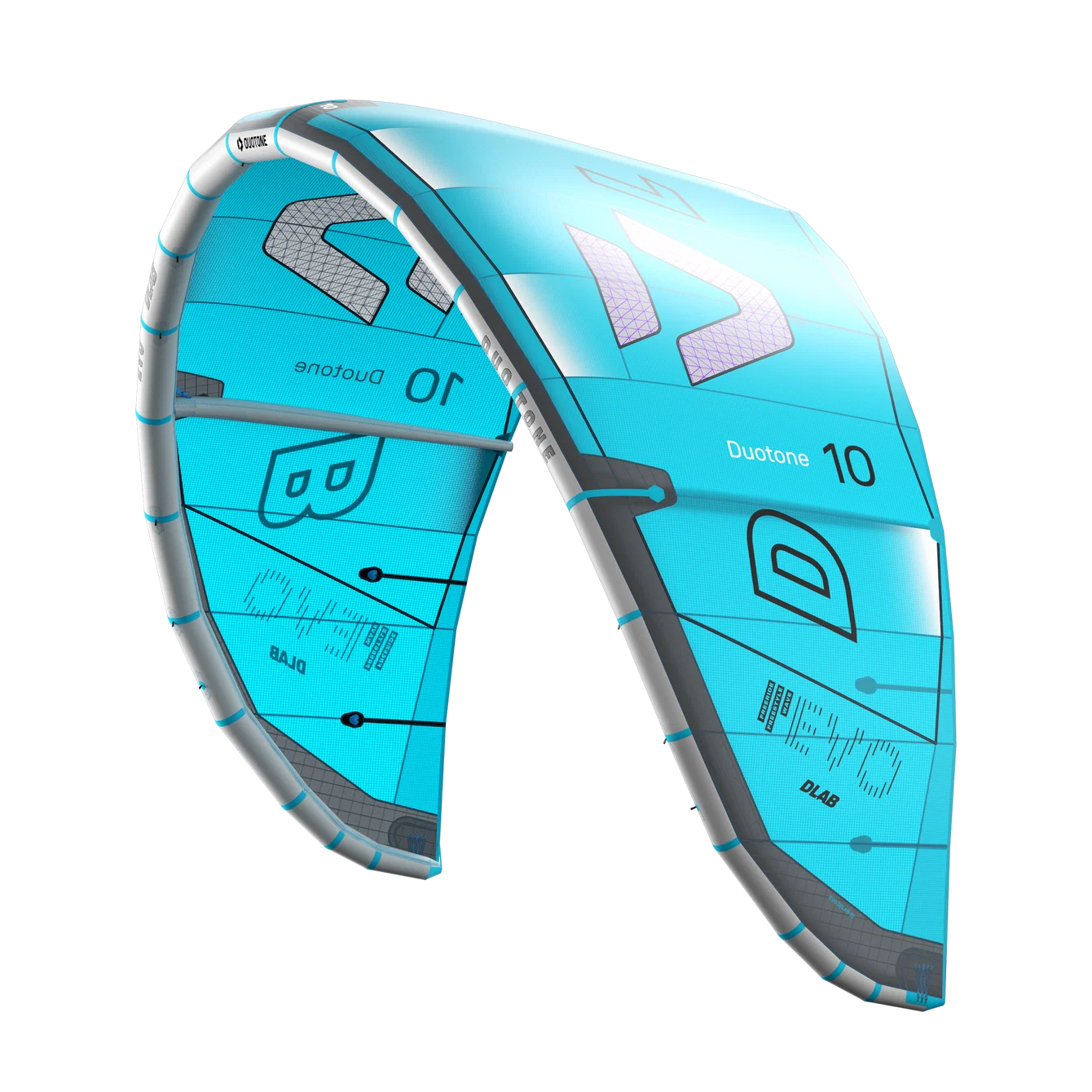

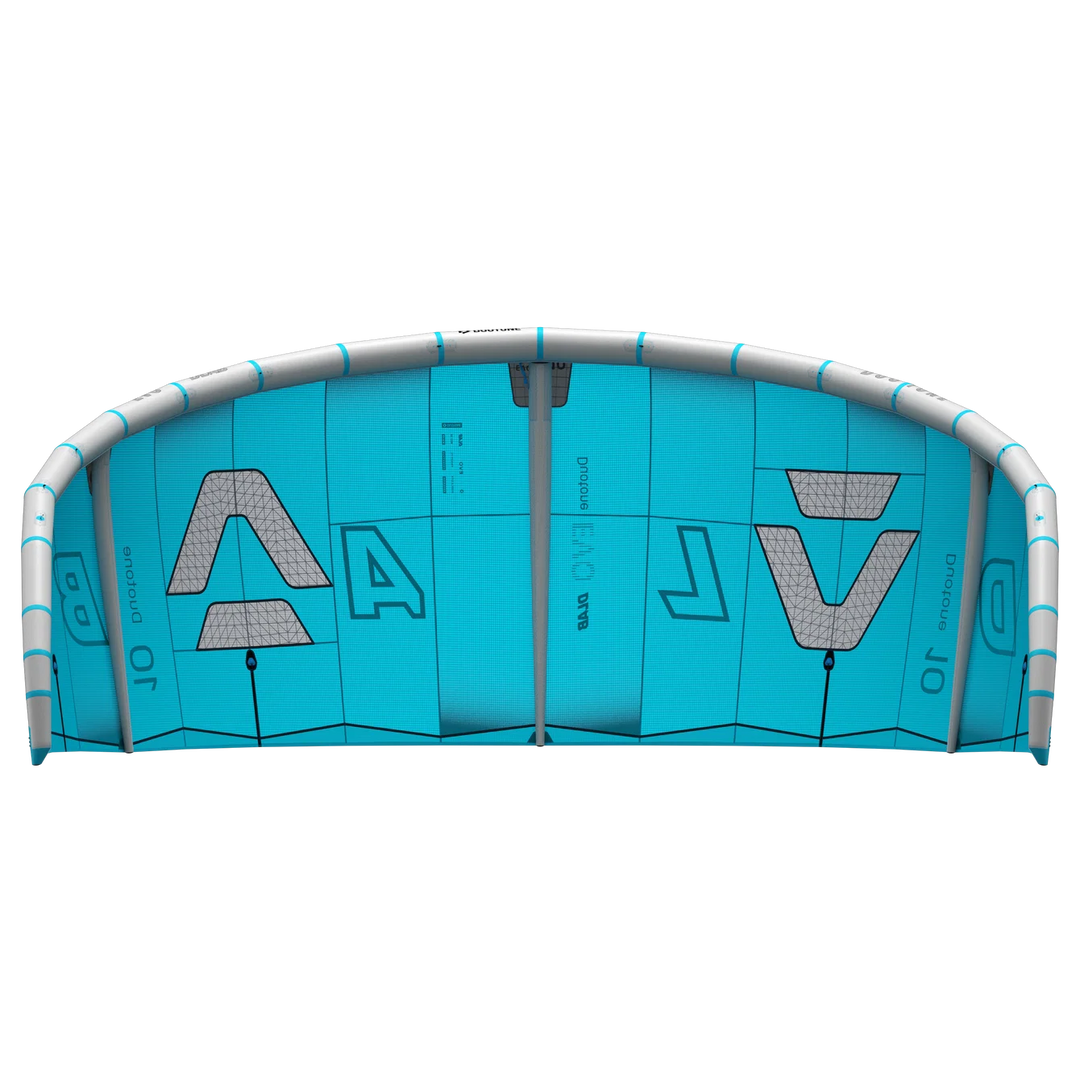

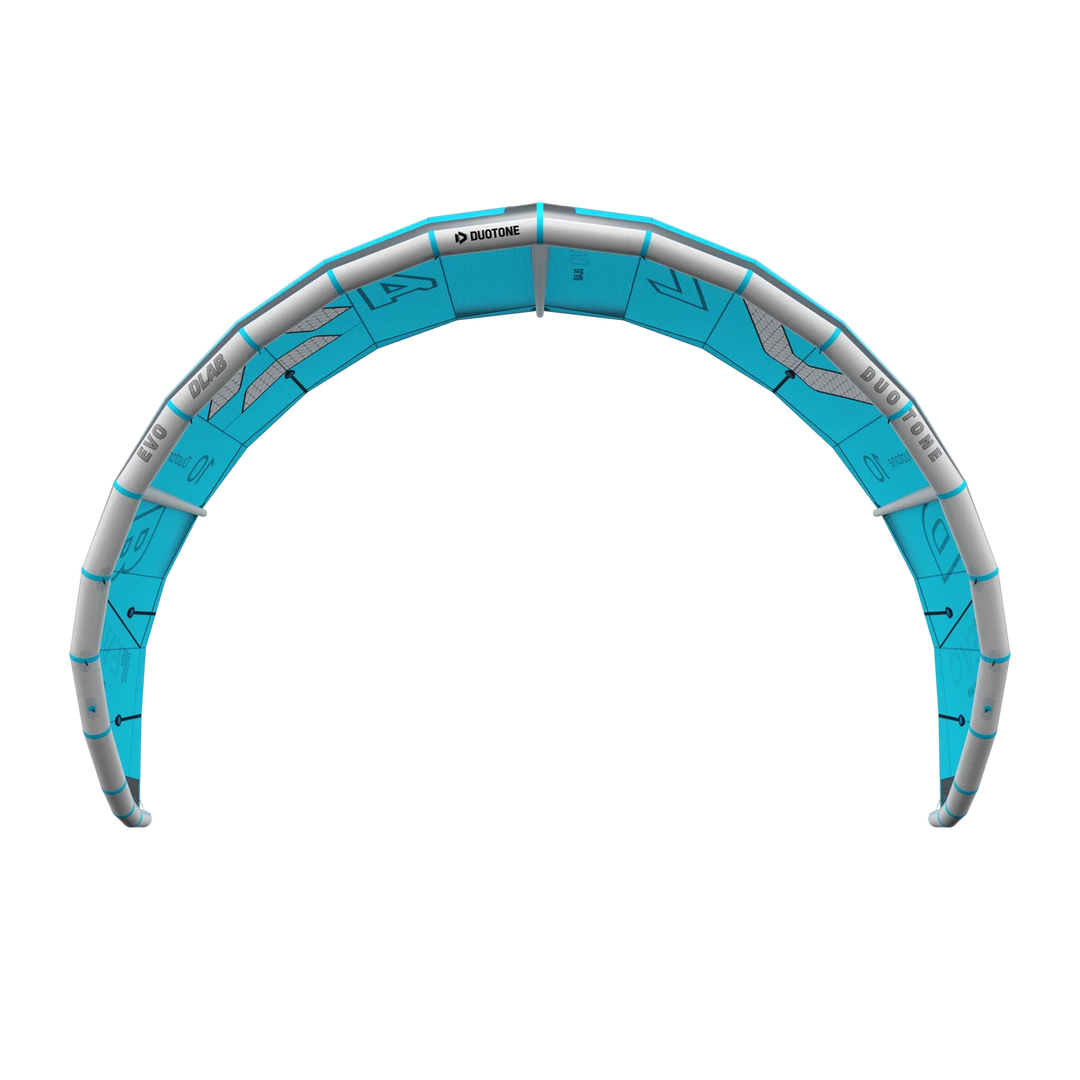

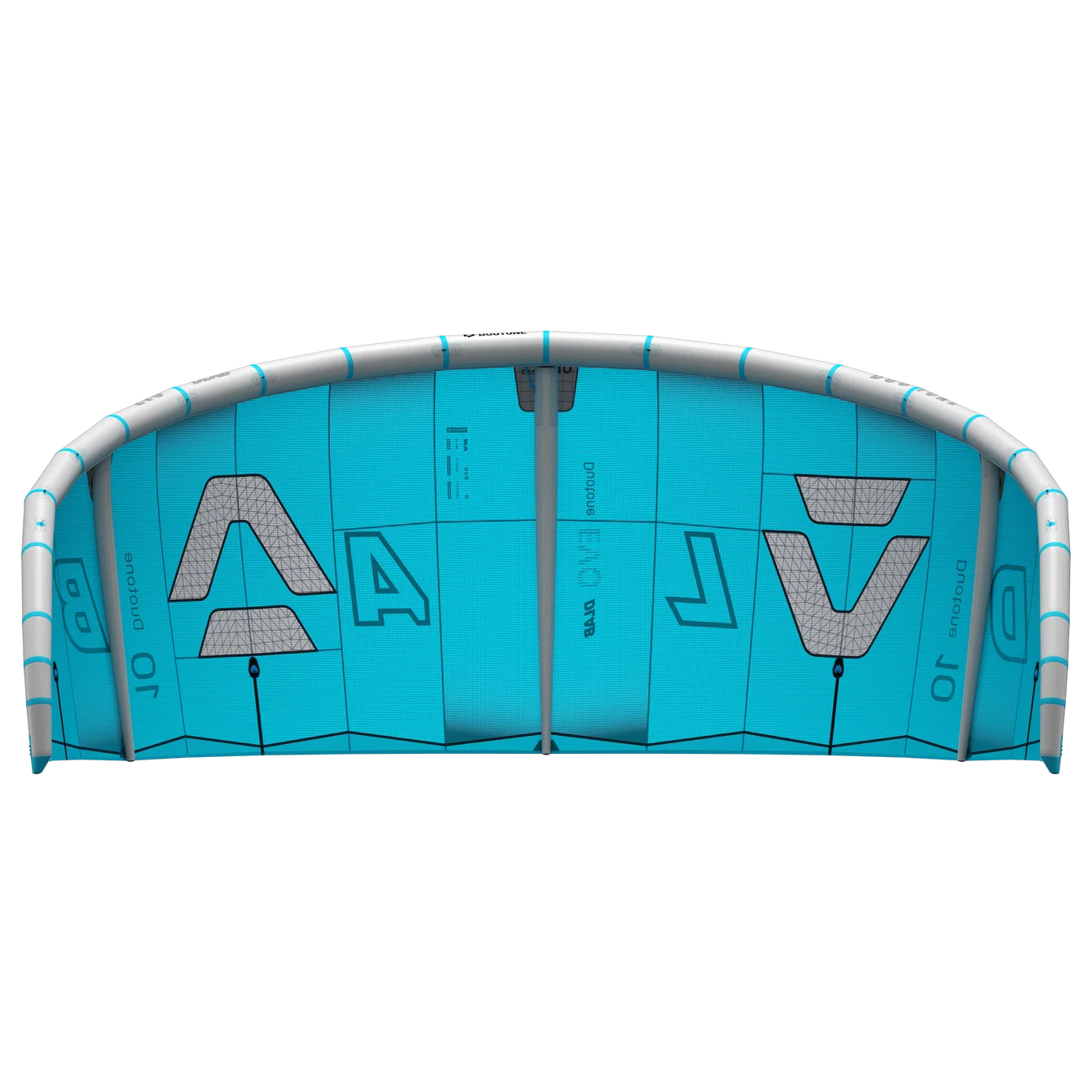

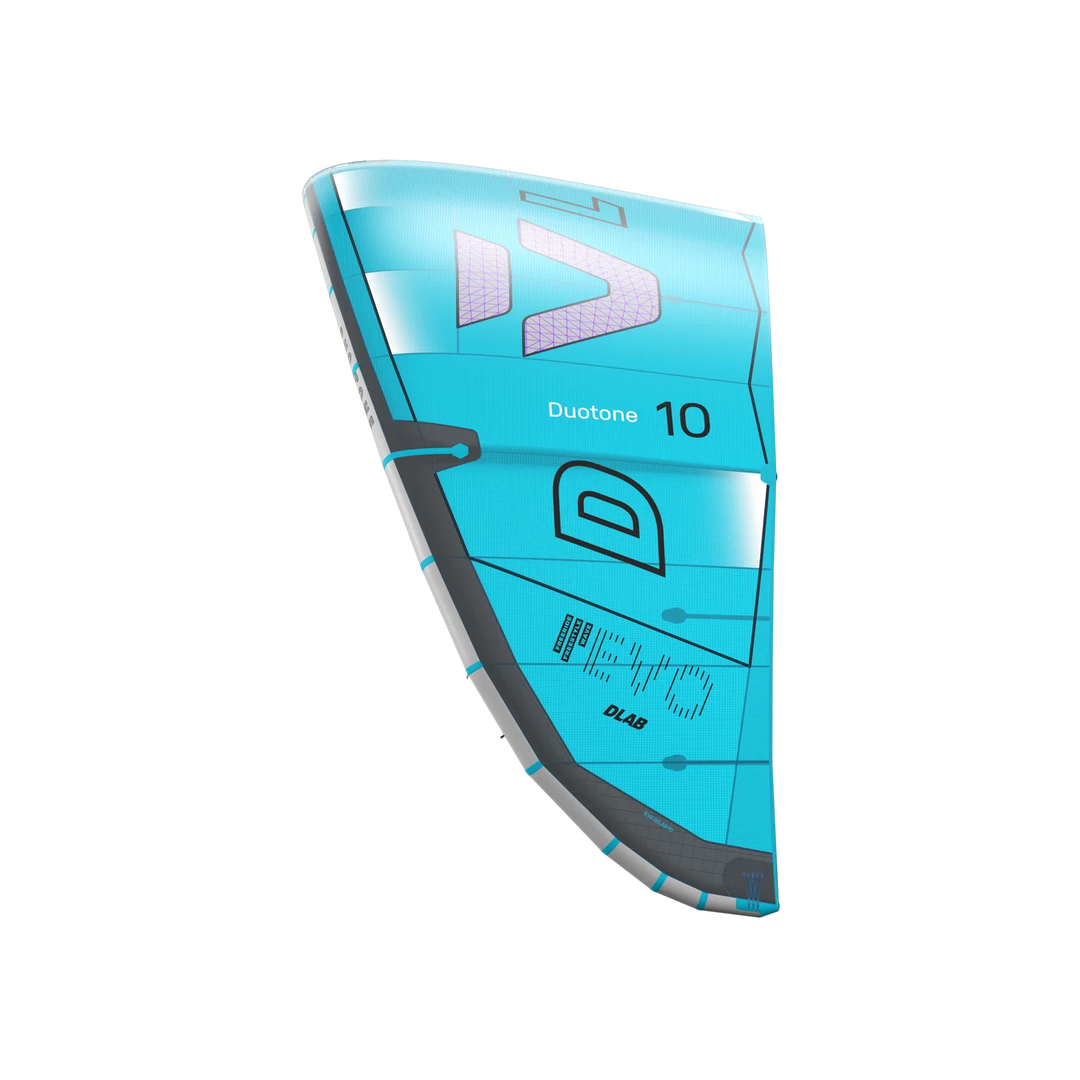

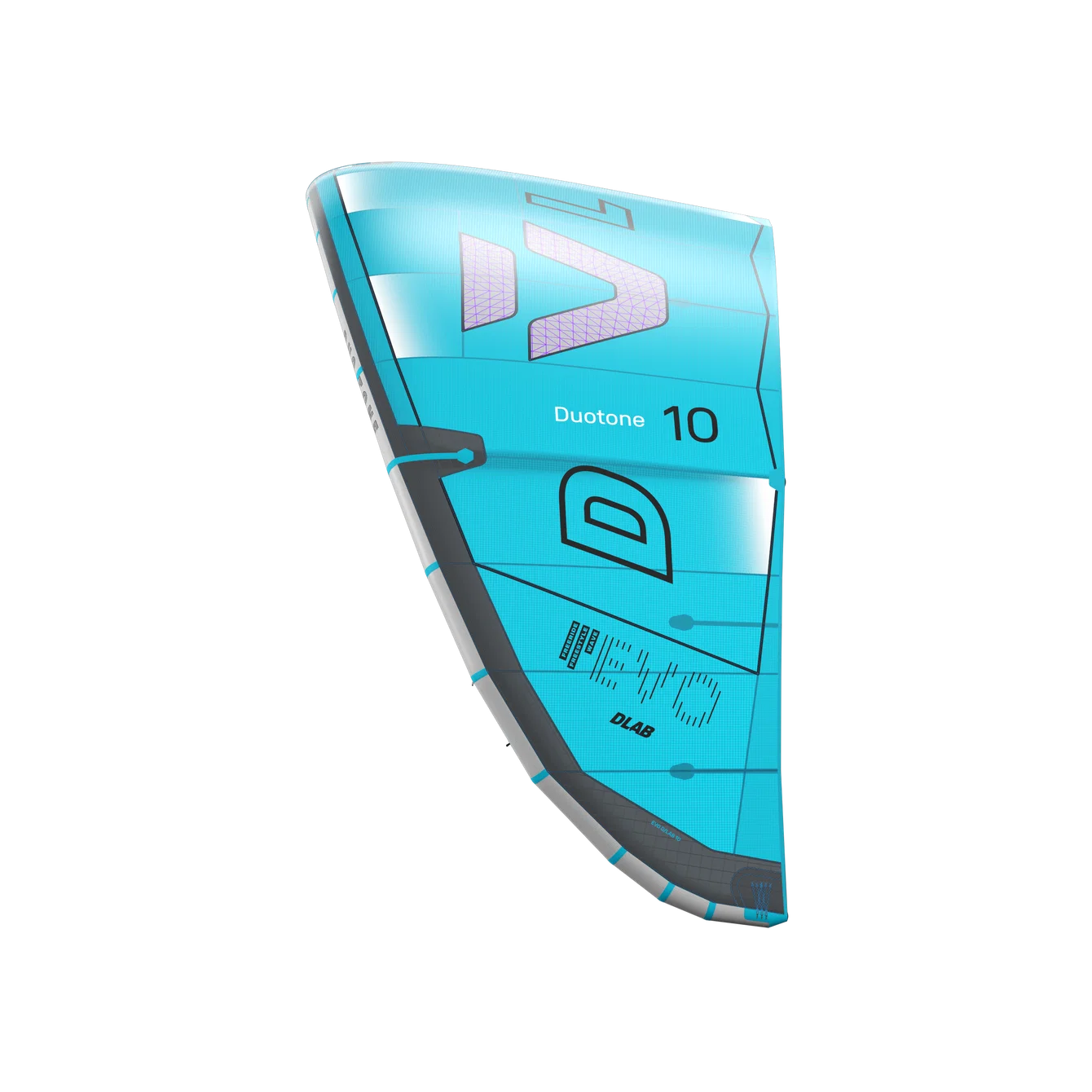

Duotone Evo D/LAB 2027

The Duotone Evo D/LAB 2027 represents the highest level of all-round performance in the Duotone kite range. Designed for riders who demand exceptional performance across Freeride, Big Air, Freestyle and Wave riding, it combines explosive jumping ability, extremely direct handling, fast and dynamic loops and impressive versatility.

At the heart of the Evo D/LAB is Duotone’s advanced three-strut Aluula D/TX frame. This exceptionally lightweight and rigid construction creates a noticeably sharper and more responsive kite. Steering input is translated immediately into movement, giving the rider a very precise connection to the kite whether boosting, looping, carving waves or performing technical freestyle manoeuvres.

Big Air and high-performance freeride are particular strengths of the Evo D/LAB. Its refined aerodynamic profile and highly rigid frame generate powerful vertical lift, easy and predictable take-offs and impressive hangtime. The kite remains precise throughout the jump, giving the rider excellent control during take-off, flight and landing.

Another major advantage of the Evo D/LAB is its exceptionally broad wind range. The combination of increased frame stiffness and carefully controlled canopy tension keeps the kite stable and predictable when the wind increases. Even when heavily powered or riding in gusty conditions, the kite remains composed and manageable.

At the lower end of the wind range, the lightweight Aluula D/TX construction helps the kite accelerate quickly and generate power efficiently. This allows riders to get going earlier in lighter winds while still retaining the responsive and agile handling expected from a high-performance kite.

The Evo D/LAB also offers excellent upwind ability. Its clean canopy shape and efficient forward flight allow the kite to sit far forward in the wind window, helping riders maintain speed and line tension while tracking efficiently upwind.

The Evo D/LAB is therefore not designed around one single discipline. It is built for riders who want one premium kite capable of delivering extremely high performance across a wide variety of riding styles.

Key Features

Ultimate High-Performance All-Rounder

A highly refined kite designed to combine Freeride, Big Air, Freestyle and Wave performance in a single platform.

Explosive Lift and Big Air Performance

The stiff Aluula D/TX frame and efficient aerodynamic profile provide strong vertical acceleration, impressive height and extended hangtime while maintaining intuitive take-off characteristics.

Ultra-Direct Steering

The lightweight and rigid frame reacts immediately to rider input, resulting in precise steering, fast response and a very connected bar feel.

Dynamic Kiteloops

Its low weight, rigid structure and responsive steering allow the kite to turn quickly and confidently through loops while maintaining control.

Huge Wind Range

The combination of frame rigidity and optimized canopy tension keeps the kite stable deep into its upper wind range while still producing efficient power in lighter winds.

Excellent Low-End Performance

The lightweight airframe accelerates easily and generates power early, helping riders get onto the plane sooner without making the kite feel slow or heavy.

Outstanding Top-End Stability

The rigid frame maintains its shape under high load, keeping the kite stable and predictable when heavily powered or riding in strong, gusty conditions.

Excellent Upwind Performance

Efficient forward flight and a clean aerodynamic profile allow the Evo D/LAB to fly forward in the window and maintain speed while riding upwind.

Aluula D/TX Frame Construction

Duotone’s advanced Aluula D/TX material combines extremely low weight with very high stiffness. This gives the kite improved response, efficiency and structural stability.

6-Point Bridle System

The six-point bridle supports the leading edge and helps keep the kite compact and stable. It provides direct power transmission while helping increase the usable wind range and stability in gusty conditions.

MOD 3S Canopy Material

MOD 3S is designed to provide increased strength and dimensional stability. According to Duotone, it offers significantly improved tear resistance and reduced stretch compared with previous-generation materials.

Fusion Strut 2.0

Fusion Strut 2.0 creates a highly stable connection between the leading edge and the struts, improving frame integrity and contributing to a precise and dynamic flying feel.

Micro Batten Construction

Smaller and lighter battens reduce unnecessary weight while maintaining a clean canopy profile and helping control flutter.

Micro Loop Connections

Reduced-size connection points further lower the weight around the leading edge as part of the overall lightweight D/LAB construction concept.

Single Stitch Trailing Edge

The refined trailing-edge construction reduces weight and flutter while contributing to a cleaner aerodynamic profile.

High-Pressure Closing & Intersegment Seam

Reinforced seam construction helps the kite maintain its designed profile and structural integrity when subjected to high internal pressure and riding loads.

Leading Edge Intersegment Seam Construction

The leading-edge seam construction is designed to increase stiffness, structural strength and direct flight stability while keeping weight as low as possible.

Kook Proof Connectors

The line connection system is designed to prevent the flying lines from being accidentally attached in the wrong configuration.

Anti Snag

Anti-snag features around the wingtip help reduce the chance of lines catching around the kite, making relaunches easier and improving overall handling.

Riding Characteristics

Freeride:

Excellent wind range, strong upwind ability, efficient power delivery and intuitive sheet-and-go performance.

Big Air:
Explosive vertical lift, long hangtime, fast loops and excellent stability when heavily powered.

Freestyle:
Direct handling, precise steering and fast response for technical hooked and unhooked manoeuvres.

Wave:
Lightweight construction, responsive turning and good control when riding with reduced line tension.

Light Wind:
The lightweight Aluula D/TX airframe allows the kite to remain efficient and responsive even at the lower end of its wind range.

Available Sizes

6 m²
7 m²
8 m²
9 m²
10 m²
11 m²
12 m²
13 m²

Recommended Wind Ranges

6 m²: 19–42 knots
7 m²: 17–39 knots
8 m²: 15–37 knots
9 m²: 13–35 knots
10 m²: 11–33 knots
11 m²: 10–30 knots
12 m²: 9–28 knots
13 m²: 8–26 knots

Recommended Line Length

6–9 m²: 22 m
10–13 m²: 24 m

Recommended Bar Width

6–9 m²: Small
10–13 m²: Medium
